FELIX GLUER
Combo

The best solution for complex projects and POS display gluing.

A PERFECT SOLUTION FOR:
This product provides several applications across a number of materials and business lines. To find out more about them, press a related button.
4 independent work tables
Available in 4 model sizes

Easily scale your production

With FELIX GLUER : Combo even the most complex projects can become a welcome challenge. 4 independent work tables provide unlimited configuration possibilities (from 2 to 8 workers on a single task). Available in 4 different sizes, FELIX GLUER : Combo can glue die-cut forms of a great variety.

Any gluing path possible

Enjoy the unmatched speed and precision of automated gluing. As a digital system, practically any gluing design is possible, from multilines and dots, to spray paths. The efficiency is significantly enhanced with an option of applying both hot melt and cold glue at the same time. User-friendly plotter interface, together with a robust design software, make the gluing process a breeze.

Features

A dual-sided compact glue plotter

The FELIX GLUER series machines are computer-controlled glue applying plotters, allowing an automatic application of adhesives on elements placed on the worktable. This particular model provides a worktable that can be accessed from both sides by gluing operators.

Both hot melt & cold glue application of a variety of glue paths

This machine can be equipped with both hot melt and cold glue systems, operating at the same time. The CNC precision provides an advanced way of applying different glue paths. Depending on the workflow, gluing systems and cost-reduction techniques implemented, glue paths can vary from single lines, multi-lines, dots, microdots and spray. Find out more about FELIX GLUER gluing systems in a dedicated section. Read more >

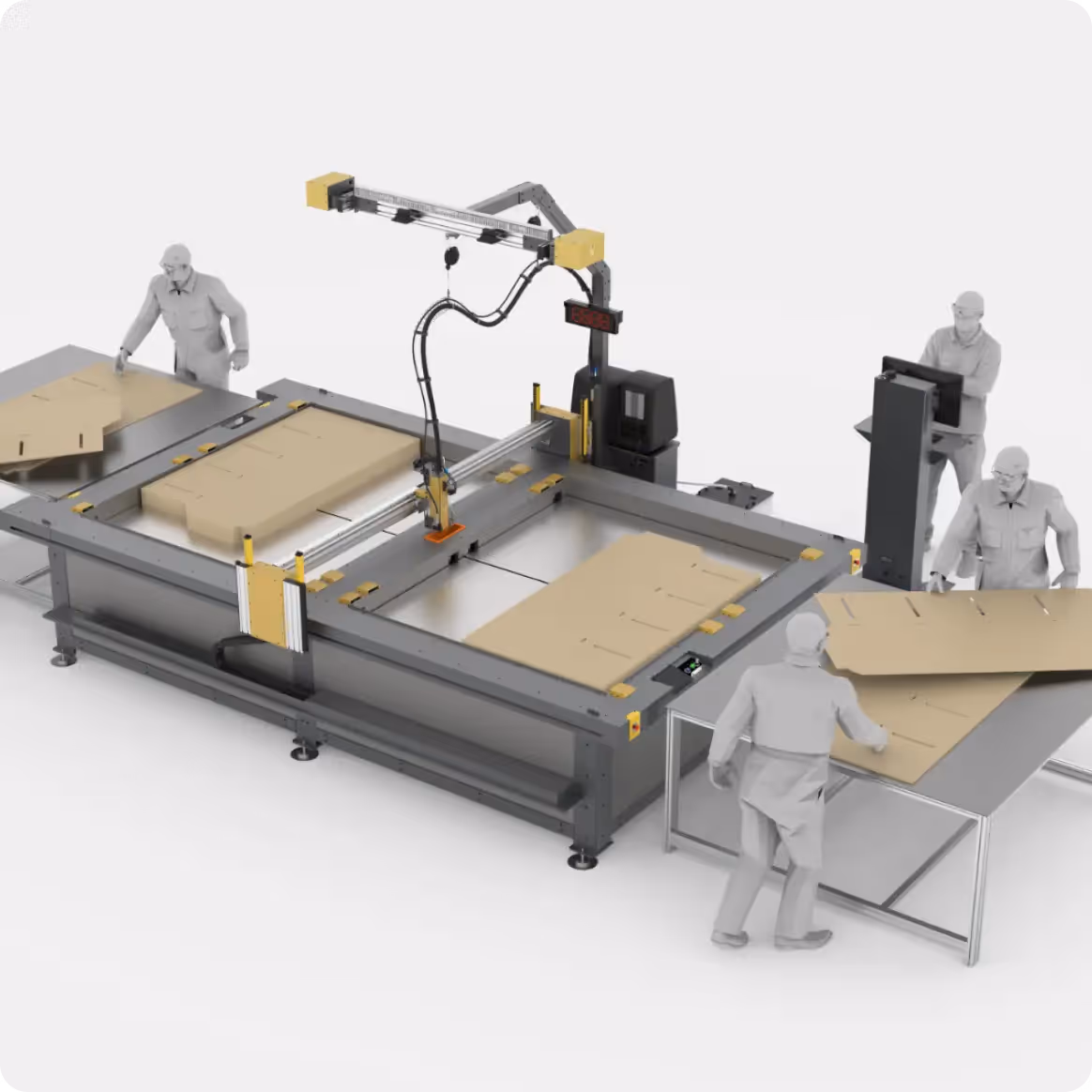

4 independent up & down stacking work tables, with safety sensors

4 independent worktables provide unlimited configuration possibilities (from 2 to 8 workers on a single task). Safety sensors as well as an optical safety barrier and optional access limiters provide an additional layer of protection against safety hazards while using the machine.

Powered by Valco Melton ®

This plotter is equipped with hot melt systems and pump units provided by Valco Melton, one of the world's leaders in adhesive dispensing technology.

Semi-automatic material loading

The up & down stacking function allows for fluid loading and unloading of glued elements. Worktables can move vertically in both directions, enabling material stacking.

Max single table load – 300 kg | Material stack height – 500 mm

The maximum load capacity of this model’s single worktable cannot exceed 300 kg. Glued elements can be stacked on the worktable up to a maximum height of 500 mm.

A PC with preinstalled design & control software - FELIX GLUER : Pro (full license)

This model of FELIX GLUER has been equipped with an advanced toolset featuring both design and production control functionalities. The FELIX GLUER : PRO suite has been developed by the internal team, introducing an unmatched possibility to configure the production setup with the FELIX GLUER glue plotter exactly according to your business model and production capacity. CAD design functionality lets you build you gluing path designs from scratch, with many optional upgrades, expanding on basic features. Find out more about FG : PRO in a dedicated section. Read more >

Production planning and control tools

You can upgrade this model with a number of productivity-enhancing features that will take your gluing workflow to the next level.   From production planning and production data tracking to access credentials configuration, your  team can fully capitalize on gluing automation. Find out more about those Accessories in a dedicated section. Read more >

Free CAD design import (DXF, DWG, AI)

If your design team is working on an external CAD software, you can easily import CAD files in formats such as DXF, DWG and AI.

Advanced remote service system with service camera

A PC stand provided together with this FELIX GLUER machine is equipped with a service camera for handling any service request remotely, if possible. This allows our Support team representative to efficiently identify a large number of potential issues during an online video call.

The feature you were expecting is not here?

We are always up for the challenge when it comes to streamlining your business operations. While our broad product portfolio already reflects hundreds of use cases, it is possible to achieve even more specific production requirements by going custom. Contact our team to learn more. Contact us >

Upgrade your FG : Combo with:

Design Tools
FG : Photopath

Instead of drawing glue paths manually, use the fastest path design tool on the market. With FG: Photopath you can take the worktable’s top-down photoshots with loaded materials as a reference when designing in FG: PRO. Operators can then create the glue path design with perfect accuracy. Read more >

FG : Photoshape

The FG: Photoshape tool offers an alternative way to design paths on glued materials, without even touching the design in FG: PRO. FG: Photoshape will track the references drawn on the worktable and generate glue paths in FG: PRO accordingly. All done in a matter of seconds. Read more >

FG : Barcode Scanner

An integrated barcode scanner device allowing an easy access to the design and production data in FG: PRO. Perfect for scenarios with a ready design piece included in a barcode on the glued material. Read more >

PRODUCTION CONTROL TOOLS
FG : Statistics

A software module for data analysis and reporting of production costs. FG : Statistics processes every detail from the production process, providing detailed data on on glue consumption, gluing and production time, non-productive time or machine efficiency. Read more >

FG : Production Planner

A production planning module, providing precise control over the production queue. With the Production Planner module, any gluing task can be set and planned for execution at the precise time in the future. Read more >

FG : Card Access

A touchless login system with an improved access to team data. FG: Card Access lets you control credentials of each team member. Read more >

WORKTABLE OPTIONS
FG : Middle Barrier

A physical barrier that doubles the number of work zones, increasing the production flexibility and the number of glued elements. Read more >

FG : Smart Tables

An additional worktable sensor that checks for the availability of materials, stopping the production when running out of glued elements. Read more >

FG : Pin Table

A set of magnetic pins, available in 3 different sizes. Perfect for setting up small glued elements on the worktable. Read more >

EXTERNAL DEVICES
FG : Press

A physical press to improve the bonding process of glued elements. Available in 3 different sizes. Read more >

FG : Assembly Table

An external table for a manual placement of glued elements. Available in 3 different sizes. Read more >

FG : UP & DOWN Stacker

An external table with a material stacking option, allowing stacking of the materials in a semi-automatic manner. Read more >

Brochures and floor plans

This FELIX GLUER model is available in following versions. A presentation brochure is also available for download.
BROCHURE
DOWNLOAD
FLOORPLAN

S

2x [1650 x 1250]
4x [825 x 1250]
dimensions in mm
DOWNLOAD

M

2x [2000 × 1650]
4x [1000 × 1650]
dimensions in mm
DOWNLOAD

L

2x [2200 × 1800]
4x [1100 × 1800]
dimensions in mm
DOWNLOAD

XL

2x [2500 × 1800]
4x [1250 × 1800]
dimensions in mm
DOWNLOAD

One size

dimensions in mm
DOWNLOAD
